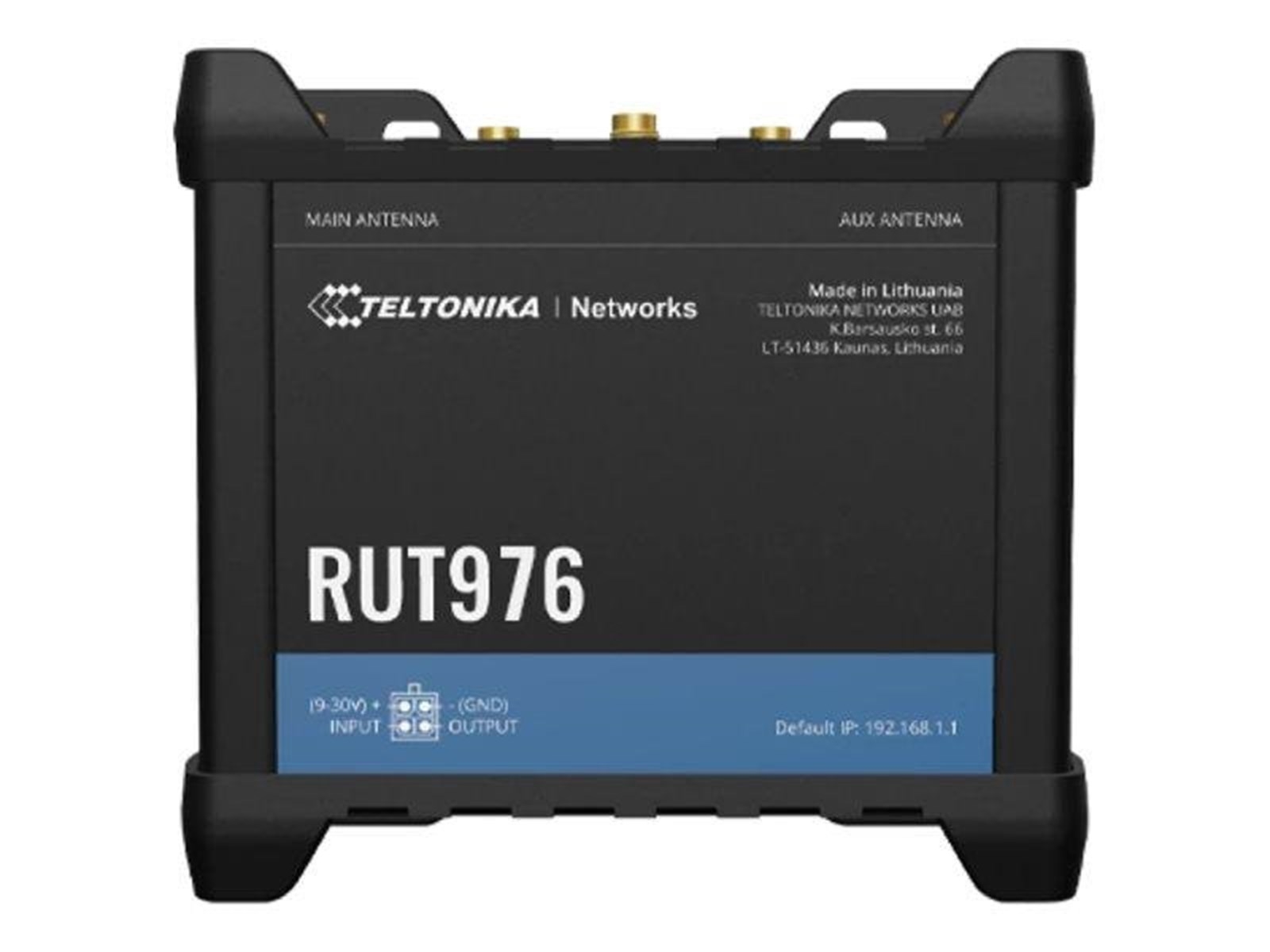

Teltonika RUT976 5G/4G/LTE Trådløs Router Sort

Teltonika RUT976 5G/4G/LTE Trådløs Router Sort

RUT976

REDCAP 5G ROUTER

The RUT976 is an industrial Redcap 5G router supporting SA architecture, carving a balanced niche between traditional 4G and full-capacity 5G. This 5G router can wirelessly support up to 100 end devices and features the low latency of 5G—at affordable pricing. In case of limited 5G coverage, the RUT976 is backward compatible with 4G LTE Cat 4. It also boasts dual SIM slots with auto-failover, Wi-Fi, GNSS, a wide range of interfaces, including four 10/100 RJ45 slots, RS232, RS485, and multiple I/Os, and numerous other brilliant features for expert professional deployment

Specifikationer:

Mobile

Mobile module: 5G Sub-6Ghz SA 223 Mbps DL , 123 Mbps UL; 4G LTE Cat 4 – LTE 195 Mbps DL, 105 Mbps UL

3GPP Release: Release 17 RedCap

eSIM*: Consumer type eSIM, profile download and removal operations, up to 7 eSIM profiles; does not include data plans

SIM switch*: Dual SIM and eSIM, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection

Wireless

Wireless mode: 802.11b/g/n (Wi-Fi 4), Access Point (AP), Station (STA)

Wi-Fi security: WPA2-Enterprise: PEAP, WPA2-PSK, WPA-EAP, WPA-PSK, WPA3-SAE, WPA3-EAP, OWE; AES-CCMP, TKIP, Auto-cipher modes, client separation, EAP-TLS with PKCS#12 certificates, disable auto-reconnect, 802.11w Protected Management Frames (PMF)

SSID/ESSID: SSID stealth mode and access control based on MAC address

Wi-Fi users: Up to 100 simultaneous connections

Wireless Connectivity Features: Wireless mesh (802.11s), fast roaming (802.11r), BSS transition management (802.11v), radio resource measurement (802.11k)

Wireless MAC filter: Allowlist, blocklist

Wireless QR code generator: Once scanned, a user will automatically enter your network without needing to input login information

TravelMate: Forward Wi-Fi hotspot landing page to a subsequent connected device

Ethernet

WAN: 1 x WAN port 10/100 Mbps, compliance IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX

LAN: 3 x LAN ports, 10/100 Mbps, compliance IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX

VPN

OpenVPN: Multiple clients and a server can run simultaneously, 27 encryption methods

OpenVPN Encryption

DES-CBC 64, RC2-CBC 128, DES-EDE-CBC 128, DES-EDE3-CBC 192, DESX-CBC 192,

BF-CBC 128, RC2-40-CBC 40, CAST5-CBC 128, RC2-64-CBC 64, AES-128-CBC 128, AES-128-CFB 128, AES-128-CFB1 128, AES-128-CFB8 128, AES-128-OFB 128, AES-128-GCM 128, AES-192-CFB 192, AES-192-CFB1 192, AES-192-CFB8 192, AES-192-OFB 192, AES-192-CBC 192, AES-192-GCM 192, AES-256-GCM 256, AES-256-CFB 256, AES-256-CFB1 256, AES-256-CFB8 256, AES-256-OFB 256, AES-256-CBC 256

IPsec: XFRM, IKEv1, IKEv2, with 14 encryption methods for IPsec (3DES, DES, AES128, AES192, AES256, AES128GCM8, AES192GCM8, AES256GCM8, AES128GCM12, AES192GCM12, AES256GCM12, AES128GCM16, AES192GCM16, AES256GCM16)

GRE: GRE tunnel, GRE tunnel over IPsec support

PPTP, L2TP: Client/Server instances can run simultaneously, L2TPv3, L2TP over IPsec support

Stunnel: Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program’s code

DMVPN: Method of building scalable IPsec VPNs, Phase 2 and Phase 3 and Dual Hub support

SSTP: SSTP client instance support

ZeroTier: ZeroTier VPN client support

WireGuard: WireGuard VPN client and server support

Tinc: Tinc offers encryption, authentication and compression in it's tunnels. Client and server support.

BACNET

Supported modes: Router

Supported connection types: RS485, TCP

Configuration options: Support for multiple BACnet/IP interfaces, Network number assignment, Preconfigured BDT entries for BBMD (BACnet Broadcast Management Device)

OPC UA

Supported modes: Client, Server

Supported connection types: TCP

DATA TO SERVER

Protocol: HTTP(S), MQTT, Azure MQTT

Data to server: Extract parameters from multiple sources and different protocols, and send them all to a single server; Custom LUA scripting, allowing scripts to utilize the router's Data to server feature

DNP3

Supported modes: TCP Master, DNP3 Outstation

Supported connection types: RS232, RS485, TCP, USB

DLMS/COSEM

DLMS Support: DLMS - standard protocol for utility meter data exchange

Supported modes: Client

Supported connection types: RS232, RS485, TCP

System Characteristics

CPU: Mediatek, 580 MHz, MIPS 24KEc

RAM: 128 MB, DDR2

FLASH storage: 32 MB, NOR Flash

Location Tracking

GNSS: GPS, GLONASS, BeiDou, Galileo and QZSS

Coordinates: GNSS coordinates via WebUI, SMS, TAVL, RMS

NMEA: NMEA 0183

NTRIP: NTRIP protocol (Networked Transport of RTCM via Internet Protocol)

Server software: Supported server software TAVL, RMS

Geofencing: Configurable multiple geofence zones

USB

Data rate: USB 2.0

Applications: Samba share, USB-to-serial

External devices: Possibility to connect external HDD, flash drive, printer, USB-serial adapter

Storage formats: FAT, FAT32, exFAT, NTFS (read-only), ext2, ext3, ext4

Input / Output

Input: 1 x digital dry input (0 - 3 V), 1 x digital galvanically isolated input (0 - 30 V), 1 x analog input (0 - 24 V), 1 x Digital non-isolated input (on 4-pin power connector, 0 - 5 V detected as logic low, 8 - 30 V detected as logic high)

Output: 1 x digital open collector output (30 V, 250 mA), 1 x SPST relay output (40 V, 4 A), 1 x Digital open collector output (30 V, 300 mA, on 4-pin power connector)

Events: Email, RMS, SMS

I/O juggler: Allows to set certain I/O conditions to initiate event

SD CARD

Physical size: Micro SD (internal)

Applications: Samba share, Storage Memory Expansion, DLNA

Capacity: Up to 2 TB

Storage formats: FAT32, NTFS, ext2, ext3, ext4

Power

Connector: 4-pin industrial DC power socket

Input voltage range: 9 - 30 VDC, reverse polarity protection, voltage surge/transient protection

PoE (passive): Passive PoE over spare pairs. Possibility to power up through LAN1 port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, 9 - 30 VDC

Power consumption: Idle: < 3 W, Max: < 7 W

Physical Interfaces

Ethernet: 4 x RJ45 ports, 10/100 Mbps

I/O’s: 2 x Inputs and 2 x Outputs on 10-pin industrial socket, 1 x Digital input and 1 x Digital output on 4-pin power connector

Status LEDs: 1 x Bi-color connection status, 5 x Mobile connection strength, 4 x ETH status, 1 x Power

SIM: 2 x SIM slots (Mini SIM - 2FF), 1.8 V/3 V, external SIM holders, eSIM (Optional - different hardware required; contact your sales manager)

Power: 1 x 4-pin power connector

Input/output: 1 x 10-pin industrial socket for inputs/outputs

Antennas: 2 x SMA for Mobile, 2 x RP-SMA for Wi-Fi, 1 x SMA for GNSS

USB: 1 x USB A port for external devices

RS232: 1 x DB9 socket

RS485: 1 x 6-pin industrial socket

Reset: Reboot/User default reset/Factory reset button

Physical Specification

Casing material: Aluminum housing, plastic panels

Dimensions (W x H x D): 110 x 50 x 100 mm

Weight: 295 g

Mounting options: DIN rail, wall mount, flat surface (all require additional kit)

Operating Environment

Operating temperature: -40 °C to 75 °C

Operating humidity: 10% to 90% non-condensing

Ingress Protection Rating: IP30
