Teltonika RUT200 4G/LTE/3G/2G Trådløs Router Sort

Teltonika RUT200 4G/LTE/3G/2G Trådløs Router Sort

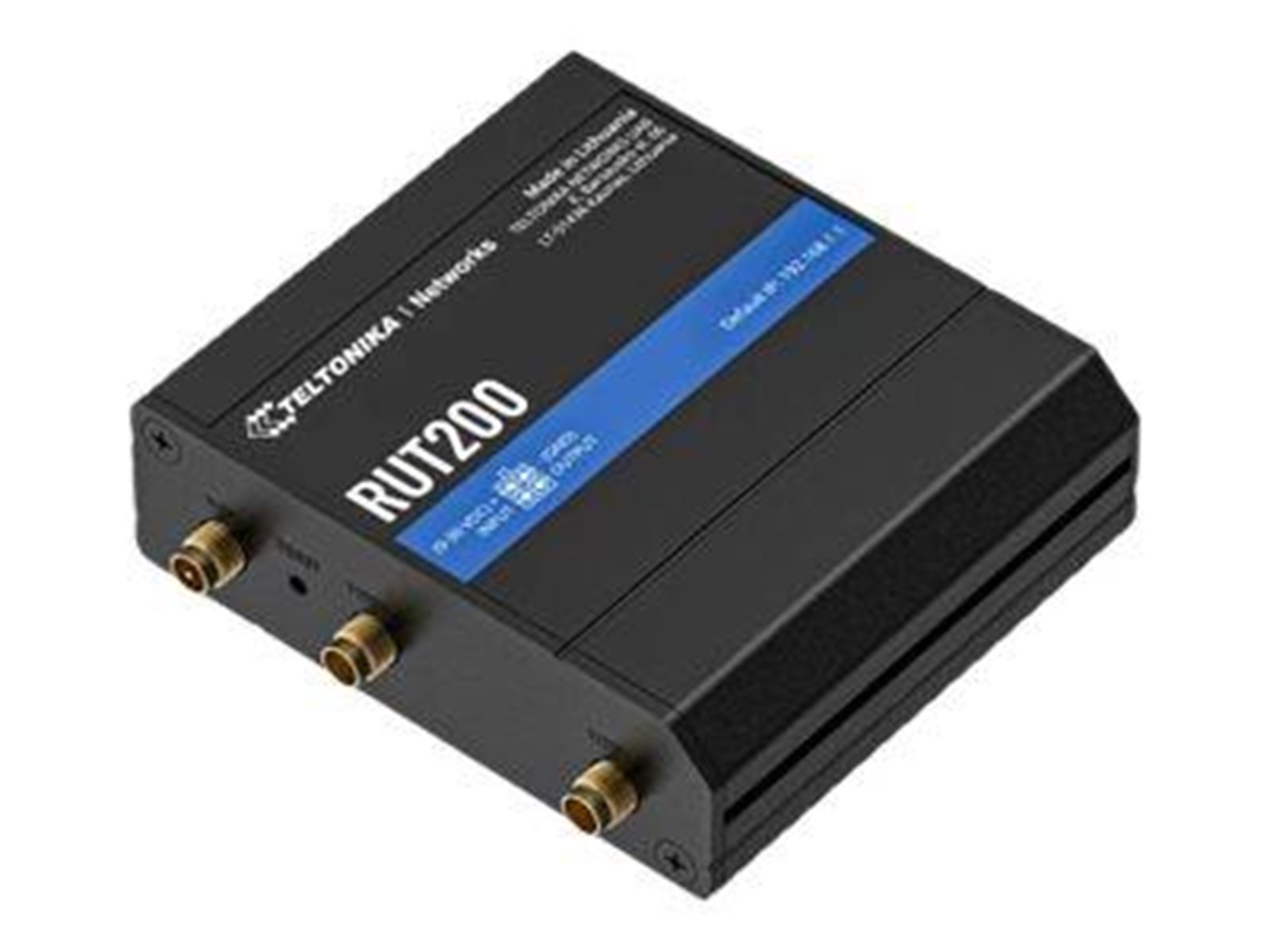

RUT200

INDUSTRIAL CELLULAR ROUTER

RUT200 is a compact industrial cellular router that provides reliable, mission-critical connectivity in rigorous conditions common in industries like automation, transportation, and manufacturing. This model is equipped with 4G LTE, Wi-Fi, and two Ethernet ports, making it ideal for quickly setting up primary and backup connectivity with remote management capabilities.

Specifikationer:

Mobile

Mobile module: 4G LTE Cat 4 up to 150 DL/50 UL Mbps; 3G up to 21 DL/5.76 UL Mbps; 2G up to 236.8 DL/236.8 UL kbps

3GPP Release: Release 9

Status: IMSI, ICCID, operator, operator state, data connection state, network type, bandwidth, connected band, signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, data sent/received, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, and MNC

SMS: SMS status, SMS configuration, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP

USSD: Supports sending and reading Unstructured Supplementary Service Data messages

Block/Allow list: Operator block/allow list (by country or separate operators)

Multiple PDN: Possibility to use different PDNs for multiple network access and services

Band management: Band lock, Used band status display

SIM PIN code management: SIM PIN code management enables setting, changing, or disabling the SIM card's PIN

APN: Auto APN

Bridge: Direct connection (bridge) between mobile ISP and device on LAN

Passthrough: Router assigns its mobile WAN IP address to another device on LAN

Wireless

Wireless mode: 802.11b/g/n (Wi-Fi 4), Access Point (AP), Station (STA)

Wi-Fi security: WPA2-Enterprise: PEAP, WPA2-PSK, WPA-EAP, WPA-PSK, WPA3-SAE, WPA3-EAP, OWE; AES-CCMP, TKIP, Auto-cipher modes, client separation, EAP-TLS with PKCS#12 certificates, disable auto-reconnect, 802.11w Protected Management Frames (PMF)

SSID/ESSID: SSID stealth mode and access control based on MAC address

Wi-Fi users: Up to 50 simultaneous connections

Wireless Connectivity Features: Wireless mesh (802.11s), fast roaming (802.11r), Relayd, BSS transition management (802.11v), radio resource measurement (802.11k)

Wireless MAC filter: Allowlist, blocklist

Wireless QR code generator: Once scanned, a user will automatically enter your network without needing to input login information

TravelMate: Forward Wi-Fi hotspot landing page to a subsequent connected device

Ethernet

WAN: 1 x WAN port 10/100 Mbps, compliance IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX

LAN: 1 x LAN port, 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX

Network

Routing: Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing

Network protocols: TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL), VXLAN

VoIP passthrough support: H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets

Connection monitoring: Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection

Firewall: Port forward, traffic rules, custom rules, TTL target customisation

Firewall status page: View all your Firewall statistics, rules, and rule counters

Port management: View device ports, enable and disable each of them, turn auto-configuration on or off, change their transmission speed, and so on

Network topology: Visual representation of your network, showing which devices are connected to which other devices

DHCP: Static and dynamic IP allocation, DHCP relay, DHCP server configuration, status, static leases: MAC with wildcards

QoS / Smart Queue Management (SQM): Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e

DDNS: Supported >77 service providers, others can be configured manually

DNS over HTTPS: DNS over HTTPS proxy enables secure DNS resolution by routing DNS queries over HTTPS

Network backup: Wi-Fi WAN, Mobile, VRRP, Wired options, each of which can be used as an automatic Failover

Load balancing: Balance Internet traffic over multiple WAN connections

SSHFS: Possibility to mount remote file system via SSH protocol

Traffic Management: Real-time monitoring, wireless signal charts, traffic usage history

Hotspot: Captive portal (hotspot), internal/external Radius server, Radius MAC authentication, SMS authorisation, SSO authentication, internal/external landing page, walled garden, user scripts, URL parameters, user groups, individual user or group limitations, user management, 9 default customisable themes and optionality to upload and download customised hotspot themes

Security

Authentication: Pre-shared key, digital certificates, X.509 certificates, TACACS+, Internal & External RADIUS users authentication, IP & login attempts block, time-based login blocking, built-in random password generator

Firewall: Preconfigured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI, DMZ, NAT, NAT-T, NAT64

Attack prevention: DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)

VLAN: Port and tag-based VLAN separation

Mobile quota control: Mobile data limit, customizable period, start time, warning limit, phone number

WEB filter: Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only

Access control: Flexible access control of SSH, Web interface, CLI and Telnet

SSL certificate generation: Let's Encrypt and SCEP certificate generation methods

802.1x: Port-based network access control server

VPN

OpenVPN: Multiple clients and a server can run simultaneously, 27 encryption methods

OpenVPN Encryption

DES-CBC 64, RC2-CBC 128, DES-EDE-CBC 128, DES-EDE3-CBC 192, DESX-CBC 192,

BF-CBC 128, RC2-40-CBC 40, CAST5-CBC 128, RC2-64-CBC 64, AES-128-CBC 128, AES-128-CFB 128, AES-128-CFB1 128, AES-128-CFB8 128, AES-128-OFB 128, AES-128-GCM 128, AES-192-CFB 192, AES-192-CFB1 192, AES-192-CFB8 192, AES-192-OFB 192, AES-192-CBC 192, AES-192-GCM 192, AES-256-GCM 256, AES-256-CFB 256, AES-256-CFB1 256, AES-256-CFB8 256, AES-256-OFB 256, AES-256-CBC 256

IPsec: XFRM, IKEv1, IKEv2, with 14 encryption methods for IPsec (3DES, DES, AES128, AES192, AES256, AES128GCM8, AES192GCM8, AES256GCM8, AES128GCM12, AES192GCM12, AES256GCM12, AES128GCM16, AES192GCM16, AES256GCM16)

GRE: GRE tunnel, GRE tunnel over IPsec support

PPTP, L2TP: Client/Server instances can run simultaneously, L2TPv3, L2TP over IPsec support

Stunnel: Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program’s code

DMVPN: Method of building scalable IPsec VPNs, Phase 2 and Phase 3 and Dual Hub support

SSTP: SSTP client instance support

ZeroTier: ZeroTier VPN client support

WireGuard: WireGuard VPN client and server support

Tinc: Tinc offers encryption, authentication and compression in it's tunnels. Client and server support.

Input / Output

Input: 1 x Digital Input, 0 - 6 V detected as logic low, 8 - 30 V detected as logic high

Output: 1 x Digital Output, Open collector output, max output 30 V, 300 mA

Events: Email, RMS, SMS

I/O juggler: Allows to set certain I/O conditions to initiate event

Power

Connector: 4-pin industrial DC power socket

Input voltage range: 9 – 30 VDC, reverse polarity protection; surge protection >31 VDC 10us max

PoE (passive): Passive PoE over spare pairs. Possibility to power up through LAN1 port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, 9 - 30 VDC

Power consumption: < 6.5 W Max

Physical Interfaces

Ethernet: 2 x RJ45 ports, 10/100 Mbps

I/O’s: 1 x Digital Input, 1 x Digital Output on 4-pin power connector

Status LEDs: 3 x Connection type status LEDs, 5 x Connection strength LEDs, 2 x LAN status LEDs, 1 x Power LED

SIM: 1 x SIM slot (Mini SIM – 2FF), 1.8 V/3 V, external SIM holder

Power: 1 x 4-pin power connector

Antennas: 2 x SMA for LTE, 1 x RP-SMA for Wi-Fi antenna connectors

Reset: Reboot/User default reset/Factory reset button

Physical Specification

Casing material: Aluminium housing, plastic panels

Dimensions (W x H x D): 83 x 25 x 74 mm

Weight: 125 g

Mounting options: DIN rail, wall mount, flat surface (all require additional kit)
