Quad Lock 360 Fleksibel Klæbebase Sort

Quad Lock 360 Fleksibel Klæbebase Sort

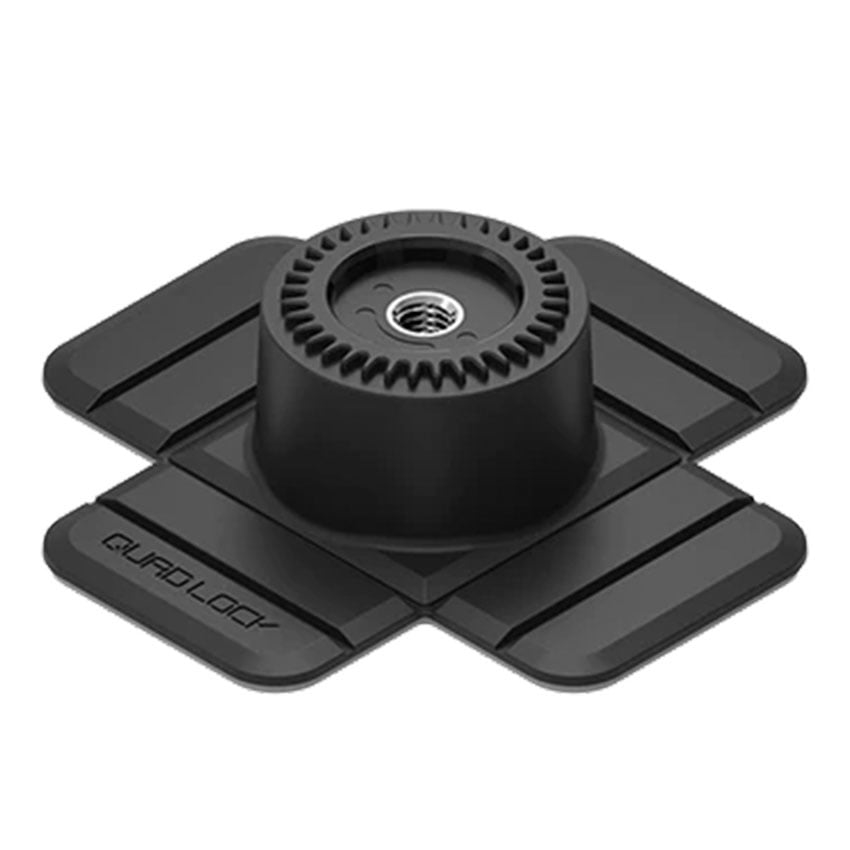

Quad Lock 360 Base - Flexible Adhesive

The Flexible Adhesive Base is suitable for mounting to flat or curved surfaces

Using a super secure 3M Adhesive, the Flexible Adhesive Base has 4 tabs which can be bent to match the curved surface.

A 10mm Spacers and x2 Screws (1 x M5x30 and 1 x M5x45) are supplied for connecting the spacer to a Quad Lock 360 HEAD or ARM.

Made from tough, nylon construction, the Flexible Adhesive Base is 60mm x 60mm with a height of 18.3mm.

Each tab is 28mm wide and has 2 grooves, which are the bending points to allow grip to curved surfaces. These can be used in a concave or convex manner.

The adhesive used is the renowned, 3M Adhesive for extra strong grip.

Compatible with all Quad Lock 360 ARMs and HEADs.

The Flexible Adhesive Base can be attached to a number of different flat and curved surfaces, however, it is not intended for severely curved surfaces (eg. 180 degrees).

The 3M VHB Adhesive will adhere to smooth, non-textured, non-porous surfaces such as:

Un-coated Glass (eg. windshield)

Plastics such as PC, ABS, PVC, Nylon, Acrylic (eg. plastic car dash, console)

Metals

Fibreglass

Sealed wood

Recommended applications:

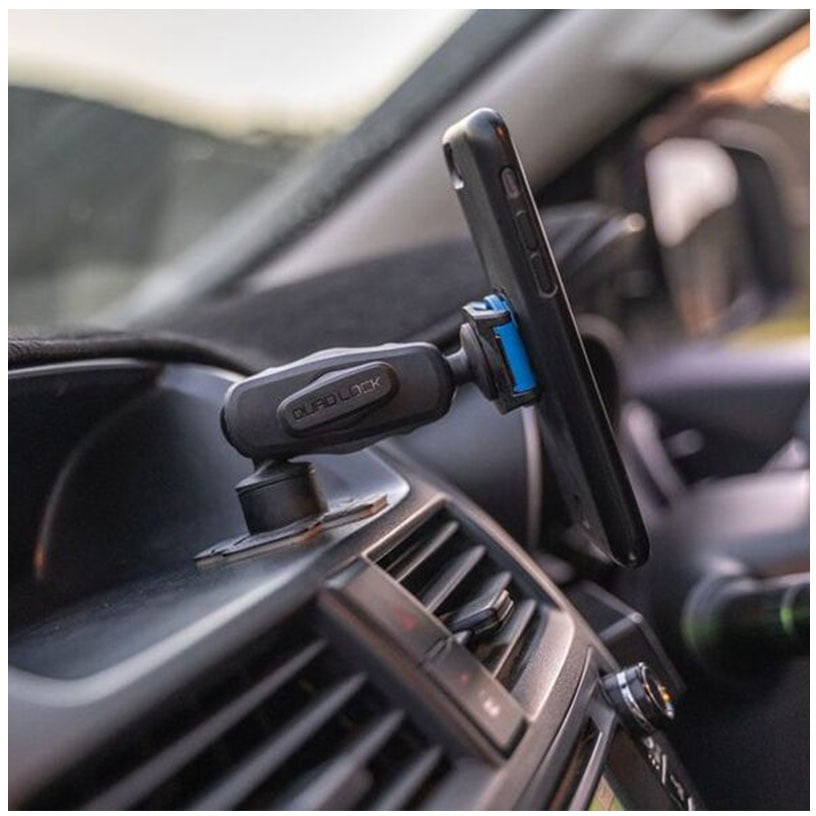

Interior of cars / 4x4

Boats

Caravans

Any low vibration element

It is not recommended for the following substrates:

Rubber, TPU, TPE

Leather

Silicone

Soft touch coating or paint

Low surface energy plastics such as Polypropylene (PP), Polyethylene (PE), Acetal, HDPE

Unsealed wood

Although possible, we do not recommend using the Flexible Adhesive Base on the following vehicles.

Motorcycles

Scooters

ATVs

Anything that causes high vibrations or receives constant exposure from outdoor elements

Please ensure the substrate is thoroughly cleaned and dry before applying the Flexible Adhesive Base.

The 3M VHB tape is a single use adhesive and is not reusable.

Ensure mount position does not obstruct vehicle safety features such as airbags.

Specifikationer:

What's Included

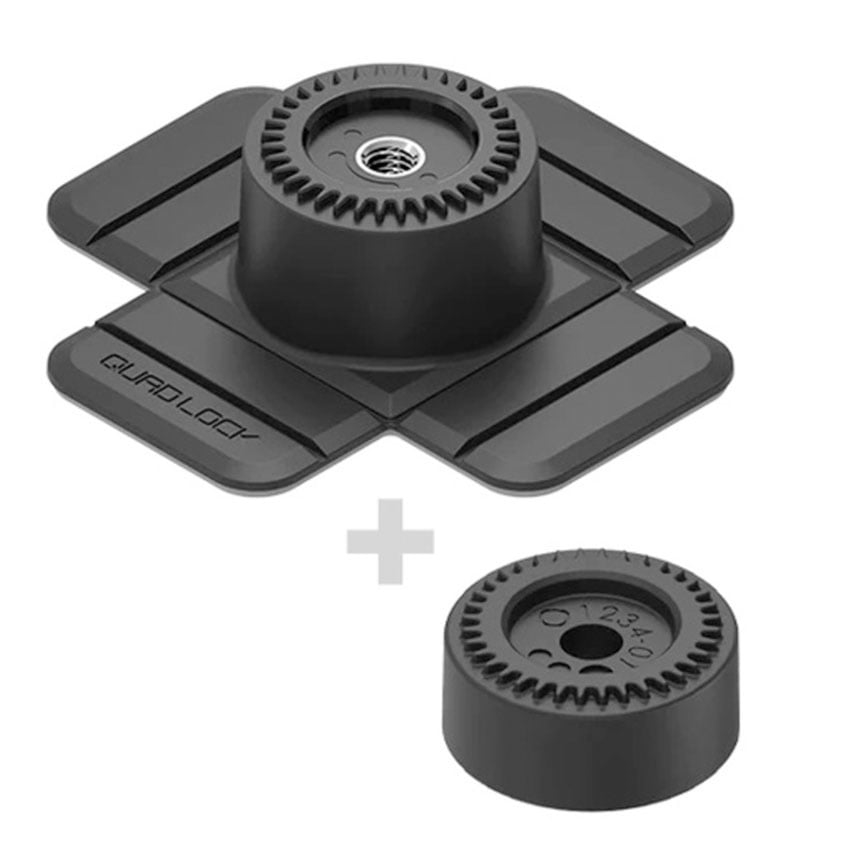

1 x Flexible Adhesive Base

1 x 10mm Spacers

1 x M5x30 screw (for connecting Spacer to Lever Head or 360 Arms)

1 x M5x45 screw (for connecting Spacer to Weatherproof Wireless Charging Head)

1 x Isopropyl Alcohol Wipe

Ovenstående informationer/specifikationer er vejledende og kan uden varsel være ændret af producenten.
Der tages forbehold for trykfejl og billederne er vejledende.

Pris ved	1	stk.	DKK

Antal

Køb

Varenummer	102051610001
Lagerstatus	På lager
Forventet leveringstid	1-2
Link til producent:	Quadlock
